100m Rotary Kiln

The structure of rotary kiln

• Kiln shell, we buy the steel plate from Bao steel, Wugang steel, the first-class steel plant in China to guarantee the quality because the shell shall resist high temperature. We have the automatic cutting machine, rolling machine which can roll 120mm thick, and skilled welders to weld the shell section. Different instruments to inspect the welding of shell.Ultrasonic test and magnetic powder test to check where is the crack and the crack position.
• The supporting unit:the supporting unit can have two,three or four,normally cement plant rotary kiln have three, lime plant have two, nickel ore plant have four or more, it depends on length and other design index of the rotary kiln.
• Tyre, most of our tyre are castings tyre ,we have our own casting company branch, which branch can make castings maximum 190t.we can also do the forging tyre,so if you need the spare parts like tyre,please try to contact with me,we can produce as per your drawings
• Pads. Such pads is to avoid the temperature difference of the tyre inside and outside surface and eliminate the expansion and contraction of the tyre to extend its lifetime.
• Girth gear. We can produce spur gear, helical gear,so if you need the spare parts like girth gear with spur gear,helical gear or bevel gear,please try to contact with me,we can produce as per your drawings
• Spring plate: to connect the girth gear and shell.
• Hyraulic thrust roller: besideds the hydraulic thrust roller,there is also mechanical thrust roller which one does not use much more now. Such unit can push the tyre and supporting roller to be worn on the whole width to extend their lifetime.
• The sealing unit:Kiln inlet and kiln outlet. We have designed from graphite block sealing to fish scales sealing. Fish scales sealing is much more simple and convenient.now most of rotary kiln we adopt fish scales sealing/

• 	Application		Quick lime plant
  	Equipment name		Ф3.2×50m rotary kiln
  1.	Technical parameter
  	Capacity	t/h	300tpd
  	Slope	%	3.5
  	Supporting No.		2pier
  	Speed
  	Main speed	r/min	0.3～3.0
  	Drive type		Single drive
  	Main drive motor
  	Type(VFD Motor)		ZSN4-280-091B
  	Power	kW	110kW
  	Rated speed	r/min	1000
  	Armature voltage		440V
  	Exciting voltage		180V
  	Speed adjusting range	r/min	100-1000
  	Protection grade		IP54
  	Auxiliary motor
  	Type:		Y160M-4B
  	Power	kW	11
  	Rated speed	r/min	1460r/min
  	Rated voltage	V	110V
  	Rated speed	r/min	0-2000r/min
  	Auxiliary gear box
  	Type		ZSY160-31.5
  	Rated power
  	Main drive gear box
  	Type		YNS1110-63VIBL
  	Total center distance		1110
  	Total nominal speed ratio	mm	63
  2.	Main part
  	Shell	pcs	Q235-B
  	Material		Q235-B or 20g
  	Tyre	pcs
  	Material		ZG310-570
  	Hardness		>180
  	Qty		2Pcs
  	Girth gear	pcs
  	Material		ZG310-570
  	Hardness		HB=200
  	Qty		1Pcs
  	Sealing at kiln inlet		Steel sealing
  	Qty	set	1
  	Sealing at kiln outlet		Steel sealing
  	Qty	set	1
  	Supporting roller part
  	Supporting roller		ZG340-640
  	Hardness		HB>190
  	Qty	Pcs	2
  	Supporting roller shaft
  	Material		45#
  	Hardness		HRC45-48
  	Qty		2Pcs
  	Thrust roller supporting unit
  	Qty	set	1
  	Supporting roller
  	Supporting roller shaft
  	Thrust roller
  	Material		ZG340-640
  	Hardness		HB>190
  	Bearing base of thrust supporting roller
  	Qty		1pcs
  	Oil pump station and control panel
  	Type		NC-14
  	Qty	pcs	1
  	Pinion part
  	Pinion
  	Material		35SiMn
  	Hardness		HB>207-269
  	Qty	pcs	1
  	Pinion shaft
  	Material		35CrMo
  	Hardness		HB>217-265
  	Qty	pcs	1

• Our company is the biggest manufacture base for the rotary kiln we have manufactured the vertical kiln from 1983, and rotary kiln from 1994,till now we have already manufactured for 26 years.Our chairman Mr Wang Jiaan make a lot of investment on arranging technical team to research, cooperate with the famous research institute and college for many years to improve the technology of our rotary kiln. From the wet process to dry process, from size around 2 meters to 6 meters.from cement plant other industry filed. From two piers to four piers.Now our rotary kiln are the leaders for rotary kiln in cement plant with capacity from 300tpd,700tpd,800tpd,1000tpd,1200tpd,1500tpd,2000tpd,2500tpd,3000tpd,3500tpd,4000tpd,5000tpd, 8000tpd ,lime plant capacity from 300tpd to 1200tpd.300tpd,400tpd,600tpd,800tpd,1000tpd,1200tpd.Nickel ore plant from 50000tons 150000tons.our such rotary kiln with advanced technology and high automation level can increase the running rate 3-5%,production has been raised by 5-10%, and heat consumption has been reduced 15% down. Till now we have sold to more than 200 hundred clients in the domestic clients in such filed and more than 100 hundred clients in foreign countries. we also cooperate European countries for the rotary kiln manufacturing.
• Workshop
•

300tpd Rotary Kiln Plant

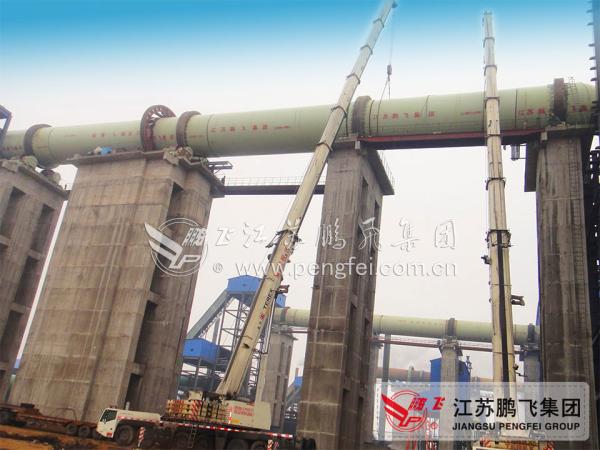

100m Rotary Kiln Plant
